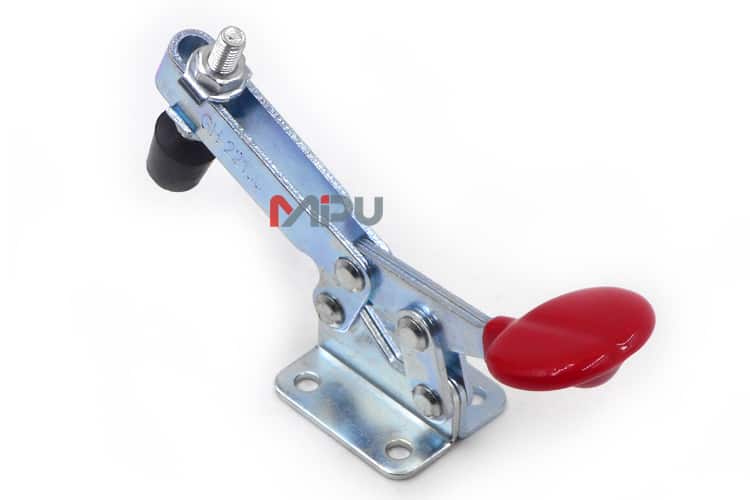

Horizontal toggle clamps ML5-22100 Retention Handle Horizontal Quick Release Tool Switch Clip

Technical Details
Type:                                   Horizontal Toggle Clamp
Model:                                ML5-22100
Material:                           Iron
Surface Finish:              Galvanized
Item Weight:                   134 g
Size:                                     137x 35x 48mm(L*W*H)
Package Dimensions:  312cm*198cm*178cm
Product Origin:              China
Lead Time：                     30 Days
Holding Capacity：       680 N
Spindle Supplied：        M6 x 45
Bar Opens：                      90 Degree
Handle Opens：               60 Degree

Dimensions

Material: Cold-rolled carbon Steel with Zinc plated coating for corrosion resistance; Oil and Stain resistant red vinyl solid hand grips, complete with adjustable rubber pressure tips
Design: Low height design. Retracted clamp will allow for vertical removal of clamped item, mechanism allows maximum clearance
Application: A rock-solid grip to install on jigs, tool fixtures, or movable bases
–100% brand new and high quality.
–Easy, safe and comfortable operation.
–Light-duty Plunger clamp that locks in extended or retracted position.

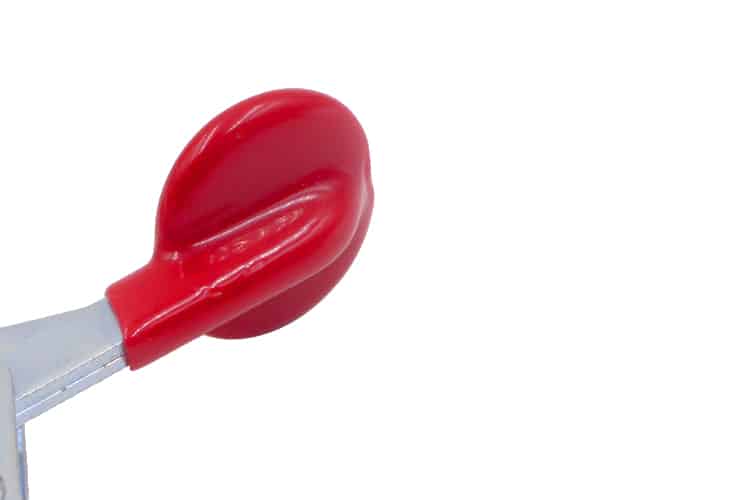

–Oil and Stain resistant red vinyl hand grips.
–Widely used in processing or assembling the fixed clamping,
flip lock buckle luggage and other industrial, agricultural, testing.

This Horizontal Quick-Release Toggle Clamp, is a must-have addition to your jig assembly.
With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that won’t slip.

The unit in CAD drawing is millimeter(mm.)
